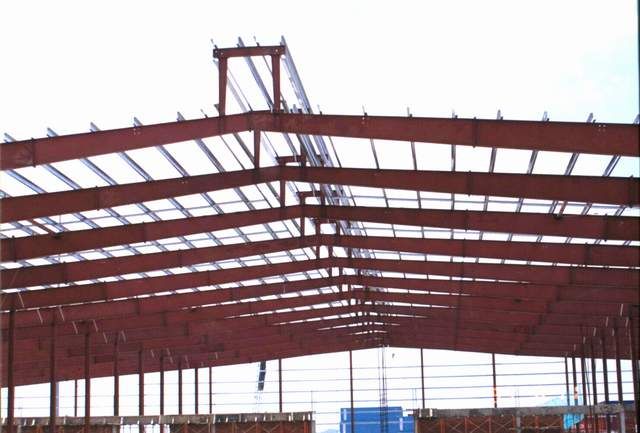

隨著建筑鋼結構技術的迅速發展和機械化程度的日益提高，輕型金屬板材及其配套的門式剛架等系列輕型鋼結構已得到了較為廣泛的應用。那么鋼結構中檁條、支撐等構件的制作安裝內容您了解嗎？

With the rapid development of building steel structure technology and the increasing degree of mechanization, light-weight metal plate and its supporting portal frame and other light-weight steel structures have been widely used. Do you know the manufacturing and installation contents of purlins, supports and other components in the steel structure?

1、為了安裝方便，隨意增大、加長檁條或檁托板的螺栓孔徑。檁條不僅僅是支撐屋面板或懸掛墻面板的構件，而且也是剛架梁柱隅撐設置的支撐體，設置一定數量的隅撐可減少剛架平面外的計算長度，有效的保證了剛架的平面外整體穩定性。若檁條或檁托板孔徑過大過長，隅撐就失去了應有的作用。

1. For the convenience of installation, the bolt hole diameter of purlin or purlin support plate shall be increased or lengthened at will. Purlin is not only a member supporting the roof panel or hanging wall panel, but also a support for the setting of the corner brace of the beam and column of the rigid frame. Setting a certain number of corner braces can reduce the calculated length out of the plane of the rigid frame and effectively ensure the overall stability out of the plane of the rigid frame. If the aperture of purlin or purlin supporting plate is too large and too long, the corner brace will lose its due function.

2、隅撐角鋼與鋼梁的腹板直接連接，當剛架受側向力時，使腹板在該處局部受到側向水平力作用，容易導致鋼梁局部側向失穩。

2. The angle steel of the corner brace is directly connected with the web of the steel beam. When the rigid frame is subjected to lateral force, the web is subjected to lateral horizontal force locally, which is easy to cause local lateral instability of the steel beam.

3、有的工程所用檁條僅用電鍍，造成工程尚未完工，檁條早已生銹。檁條宜采用熱鍍鋅帶鋼壓制而成的檁條，且保證一定的鍍鋅量。

3. The purlins used in some projects are only electroplated, resulting in that the project has not been completed and the purlins have long been rusted. Purlins should be made of hot-dip galvanized steel strip, and a certain amount of galvanizing should be guaranteed.

4、因墻面開設門洞，擅自將柱間垂直支撐一端或兩端移位。同一區隔的柱間支撐、屋面水平支撐與剛架形成縱向穩定體系，若隨意移動其位置將會破壞其穩定體系。

4. One or both ends of the vertical support between columns are displaced without authorization due to the door opening on the wall. The column bracing, roof horizontal bracing and rigid frame in the same partition form a longitudinal stability system. If they are moved at will, their stability system will be destroyed.

5、有些單位為了節省鋼材和人工，將檁條和墻梁用鋼板支托的側向加勁肋取消，這將影響檁條的抗扭剛度和墻梁受力的可靠性。故施工單位不得任意取消設計圖紙的一些做法。

5. In order to save steel and labor, some units cancel the lateral stiffeners of purlins and wall beams supported by steel plates, which will affect the torsional stiffness of purlins and the reliability of wall beams. Therefore, the construction unit shall not arbitrarily cancel some practices of design drawings.

6、有的單位擅自增加屋面荷載，原設計未考慮吊頂或設備管道等懸掛荷載，而施工中卻任意增加吊頂?shù)葢覓旌奢d，從而導致鋼梁撓度過大或坍塌。任何單位均不得擅自增加設計范圍以外的荷載。

6. Some units increase the roof load without authorization. The original design does not consider the suspended loads such as ceiling or equipment pipes, but arbitrarily increase the suspended loads such as ceiling during construction, resulting in excessive deflection or collapse of steel beams. No unit shall increase the load beyond the design scope without authorization.

7、屋面板未按要求設置，將固定式改為浮動式，使檁條側向失穩。往往設計檁條時，會考慮屋面壓型鋼板與冷彎型鋼檁條牢固連接，能可靠的阻止檁條側向失穩并起到整體蒙皮作用。

7. The roof panel was not set as required, and the fixed type was changed to the floating type, making the purlin unstable laterally. When designing purlins, it is often considered that the roof profiled steel plate and cold-formed steel purlins are firmly connected, which can reliably prevent the lateral instability of purlins and play the role of overall skin.

8、濟南輕型鋼結構廠家認為剛性系桿、風拉桿的連接板設置位置高低不一，使得水平支撐體系不在同一平面上，從而影響剛架的整體穩定性。剛性系桿與風拉桿構成水平支撐體系，其設置高度在同一坡度方向應保持一致。

8. Jinan light steel structure manufacturer believes that the setting positions of the connecting plates of rigid tie rods and wind pull rods are different, which makes the horizontal support system not on the same plane, thus affecting the overall stability of the rigid frame. The rigid tie rod and wind pull rod form a horizontal support system, and its setting height should be consistent in the same slope direction.

以上就是今天為大家介紹的關于問題以及注意事項的全部內容，希望對大家能有所幫助，想要了解更多內容可以電話聯系我們或者關注我們的網站http://m.nbsdzs.com，我們的工作人員會及時與您取得聯系。

The above is all about the problems and precautions introduced to you today. I hope it can help you. If you want to know more, you can contact us by phone or follow our website http://m.nbsdzs.com , our staff will contact you in time.
